30m Aerial Work Platform Hydraulic Truck Mounted Aerial Work Platform Aerial Lift Bucket Trucks with Telescopic Arm

Specification Items   Overall Dimension Length 5995 mm   Width 2080 mm   Height 2760 mm   Weight Weight 4495 kg   Passengers (including driver) 2 People   Mainly technical datasheet Bucket rated weight 200 kg     Bucket max height 20.7 m   Maximum working span 12 m   Outrigger Lateral span Front 4350/back4020 mm […]

Request a Quote
WhatsApp Us
Specification Items
Overall Dimension Length 5995 mm
Width 2080 mm
Height 2760 mm
Weight Weight 4495 kg
Passengers (including driver) 2 People
Mainly technical datasheet Bucket rated weight 200 kg

Bucket max height 20.7 m
Maximum working span 12 m
Outrigger Lateral span Front 4350/back4020 mm
Outrigger Longitudinal span 3970 mm
Drive specification Front/Rear suspension 1075/1815 mm
Front/rear extend 0/305 mm
Approaching/Departure Angle 19/13 °
Max. Driving Speed 100 km/h
Maximum grade ability 30 %

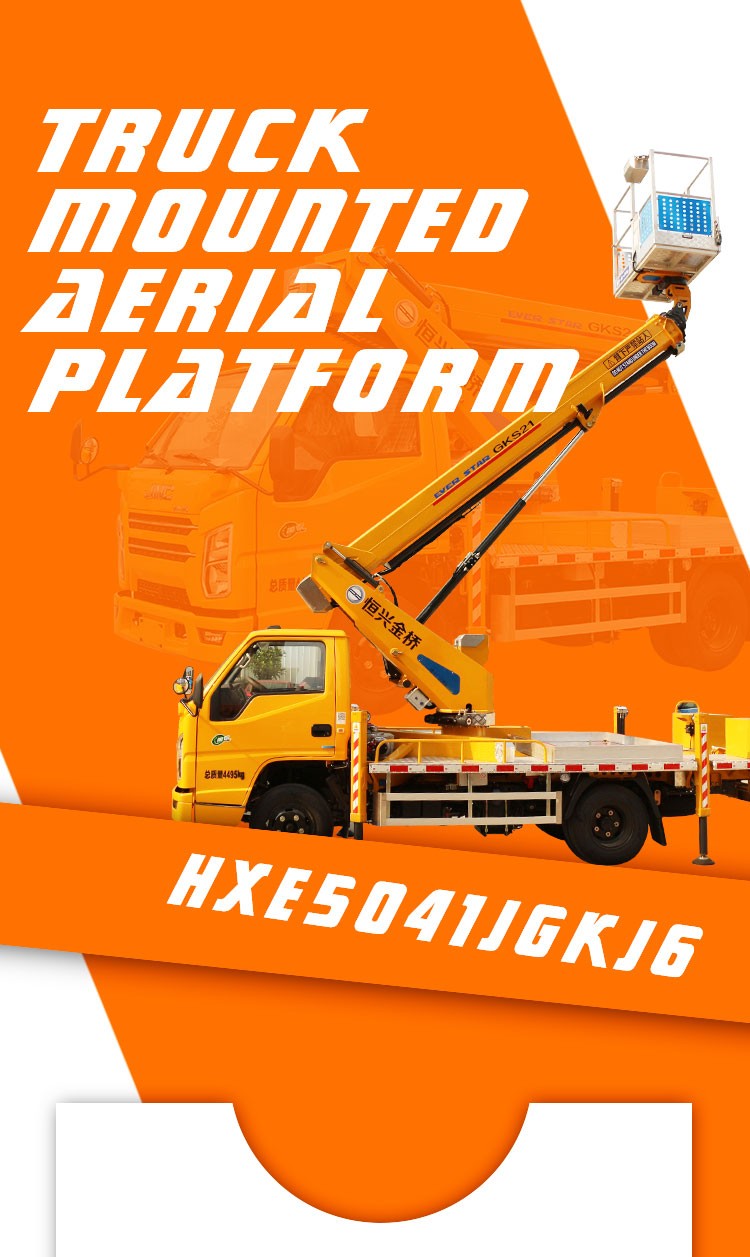

Parts description HXE5041JGKJ6 Truck Mounted Aerial Platform
Truck chassis JMC JX1041TCD26 chassis
Engine JMC JX4D30B6H, Engine power: 85KW
Cab JMC National VI CAB，Fit 2 passages(including driver)
Work platform configuration working platform dimension:1380x700x1100mm
Boom type 4-section polygon synchronous telescopic boom
Slewing type 360 ° continuous rotation
Frame high strength box frame
outrigger Front V + rear H outrigger, high-strength steel box-type outrigger, built-in pipeline
Operation Chassis equipped with a five-handle hydraulic valve group, and the outriggers are fully hydraulicaldriven both horizontally and vertically.
The truck above chassis is equipped with a load-sensitive proportional valve, which can be operated purely manually.
Loading system with wireless handheld remote control,boom luffing, telescoping and slewing can be combined.
Controller Equipped with intelligent controller and LCD, it can realize amplitude control, automatic throttle, load, amplitude, height display and other operation information.
