Description:

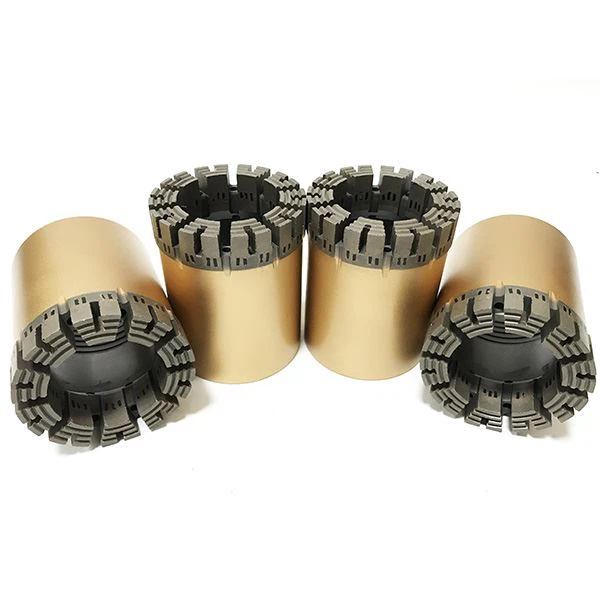

Manufactured with very small, high quality synthetic diamonds mixed evenly through a metal matrix. The matrix hardness is chosen to suit the rock formation, so that it wears evenly throughout the life of the bit, exposing new sharp diamonds.
The main crown technical parameters of impregnated diamond core bits include diamond grade,size,concentrarion and quality, matrix hardness and crowm shapes. The users can make rational selections according to the formations to be drilled. To avoid excessive bit wear, tungsten carbide inserts are used on both sides on the waterway, and gage stones are a bit larger.
Our impregnated diamond core bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The carefully selected grades of high quality synthetic diamond are distributed in the depth of impregnated bit’s matrix series.
Basic info:
Original: Wuxi, China
Certification: ISO9001
Price: Negotiable
Model No: AQ BQ NQ HQ PQ
Crown height: 9mm,10mm,12mm,14mm,16mm
Usage: wireline core barrel parts
Matrix hardness: F0-F18
Water way: 8/12
Payment term: TT, LC
Delivery date: Negotiable
Packing: export standard
MOQ: 1 PC
Features:
1. Significantly outperforms the successful Series range in drilling speed and bit life.
2. Protects the diamond from oxidation and surface degradation.
3. Inhibits the premature “pull-out” of the diamond.
4. Available in multiple standard configurations and selected on the basis of relative rock hardness and ground conditions.
Type of the Bit Matrix:
The matrix of our impregnated bits is designed to expose new diamonds to the bits’ cutting face as wear occurs. Fast penetration rate is maintained as a result of this action, also with long life using time is important, meanwhile it will keep the cost of diamond drilling to a minimum.
The optimum diamond size, concentration and matrix type are dependent on the hardness and abrasiveness of the formation to be drilled.
Size Available:
Q series: AQ, BQ, NQ, HQ, PQ, BQ3, NQ3/NQTT, NQ2, HQ3/HQTT, PQ3/PQTT
T2 Series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
T6 Series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101
T Series: T36, T46, T56, T66, T76, T86
Z Series: Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146
B Series: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
WF Series: HWF, PWF, SWF, UWF, ZWF
WT Series: RWT, EWT, AWT, BWT, NWT, HWT
WM Series: EWM, AWM, BWM, NWM
WG Series: EWG, AWG, BWG, NWG, HWG
Others: NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD10
Package and Shipping:
Package:
wooden cases, cardboard boxes and steel frames etc. as you required. And all goods will be protected by plastic films, thread protection caps, anti-rust oils, bubble films and so on to make sure no damage will be caused during shipping.
Shipping:
Special passage for container loading is available at the gate of our company to improve the efficiency.
| By Express | 1kg-50kg |
| By Air | 50kg-500kg |
| By Sea | 500kg or more |
