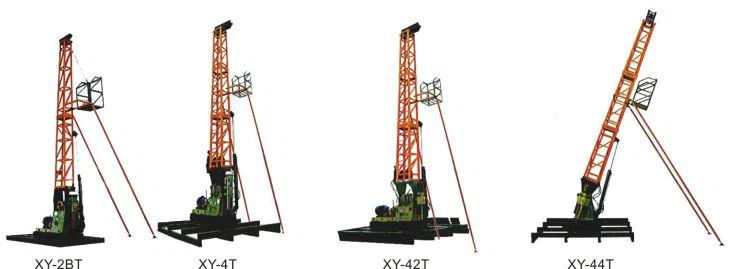

XZY-2BT/4T/42T/44T drill rig are conbined with the main machines of XZY-2B/4/42/44 and towers. This series of drill rigs are compact in structure, reasonable in compostion, light in weight, easy in disassembling, rational in rotary scope, convenient in operation and maintenance. The drill rigs have the fuctions of hydraulic raising and lowering, which is suitable in large slanting hole drilling.
Specifications
| Drilling Rig model | XZY-2BT | XZY-4T | XZY-42T | XZY-44T |
| Drilling depth | 120~600m | 700~1000m | 700~1100m | 700~1400mm |
| Max.torque | 2100N.m | 2640N.m | 3200K.m | 320N.m |
| Spindle stoke | 550mm | 600mm | 600mm | 600mm |
| I.d Of spindle | 93mm | 68mm | 93mm | 93mm |
| Max.Lifting capacity of spindle | 60KN | 80KN | 80KN | 120KN |
| Max Feeding force of Spindle | 45KN | 60KN | 60KN | 90KN |
| Max Hoisting Force | 30KN | 30KN | 30KN | 45KN |
| Engine power | 22KN | 30KN | 30KN | 37KWF |
| The specifications of the mastDrilling Rig model | XZY-2BT | XZY-4T/42T/44T |
| Drill-tower Height | 8000mm | 10000mm |
| The Area of the Base | 3600X2100mm | 4000X4000mm |
| The number of Pulley | 2 | 5 |
| Max.Load of Mast | 75KN | 100KN |
| Load of Moveable Work Platform | 70KG | 80KN |
| Adjusted Angles of Drill Tower | 45°~90° | 45°~90° |
Working Site:
Package and Shipping:
Package:
wooden cases, cardboard boxes and steel frames etc. as you required. And all goods will be protected by plastic films, thread protection caps, anti-rust oils, bubble films and so on to make sure no damage will be caused during shipping.
Shipping:
Special passage for container loading is available at the gate of our company to improve the efficiency.
About Us:
We specialized in producing of varies diamond drilling tools, such as impregnated/surface-set diamond core bits, diamond casing shoes, diamond rod shoes, reaming shells, TC core bits/casing shoes/TC rod shoes, PDC bits, Thin Wall Bits, core lifters, core lifter cases, core barrels, and kinds of drilling rigs etc.
With ISO certificate & quality control.
Trade Show:
Our Advantages:
a. Extensive Production Experience: we are specialized in diamond core bits,drill bits,wireline drilling tools,drill pipes,casings,mud pumps, underground drilling rigs with an experience of 10 years.
b. Complete Production Facilities: owning precision CNC machine, Milling machine, Sintering machine, Manipultator and other advanced equipments. Our technicians will do regular scheduled maintenance on these machines to guarantee them work well.
c. High Quality Raw Material: we mainly choose raw material from big steel factory, such as TPCO, BAO STEEL, SHA STEEL, which are best and largest raw material manufacturer in China.
d. Strict Physical/Chemical Testing Procedures: meeting the requirements of the product design and process, providing reliable testing data.
e. Short Delivery Time: If one container 15-20 days. We also stock some standard-sized tubes and rods, if you need 3-5 pcs, we can delivery soon.
f. Safe Packing: anti-rust oil be spread on tubes and rods before shipping, plastic caps on tube ends to protect inside surface, each rod be protected with cardboard tube. Finally be packed with seaworthy package or in wooden case.
g. Best After-Sale Service: Over 60% products are sold to the Southeast Asia, Middle East and Europe, and all products are trusted by domestic and foreign customers.
Our Services:
Ø Provide the technical design and solutions;
Ø Designing and manufacturing of non-standard equipment;
Ø Professional technical training and guidance on site according to the contract;
Ø Supply accessories at any time;
Ø Tele-technical consulting and services;
Ø Other special technical service according to client’s requirements.
